Advanced Handheld X-Ray Camera



The REMEX-XCam6 is a next-generation, ultra-portable X-ray camera designed for point-of-care diagnostic imaging. It combines high image quality, minimal radiation exposure, and ergonomic design to bring X-ray capabilities directly to the patient — in the ICU, emergency room, clinic, or field.



With its compact size and lightweight design (≈ 2.6 kg), clinicians can easily perform diagnostic exams of extremities – hands, feet, arms, legs, and more – whether handheld or mounted on a tripod.



Equipped with adjustable tube voltage up to 90 kV and tube current up to 6 mA, imaging is optimized for clarity while keeping radiation exposure minimal. The short exposure times (0.06 to 2.0 s) enable sharp, motion-free images — and acquisition occurs in under 3 seconds. A 0.4 mm focal spot ensures high spatial resolution, supporting accurate bone and soft tissue visualization. Remote control operation allows flexible workflow in varied clinical settings.



Tested and cleared under industry safety standards, the XCam6 is intended for use by qualified clinicians and is ideal for clinics, mobile healthcare units, or field applications.

Key Features

  • Handheld, portable X-ray camera for medical imaging

  • Designed for point-of-care-testing

  • Low radiation exposure for both operators and patients

  • High resolution imaging with advanced image processing

  • Quick image acquisition (under 3 seconds)

  • Variable tube voltage and current for flexible imaging

  • Compact and lightweight design (2.6 kg) - Remote control functionality (for REMEX-XCam6 only)

  • 90kv: Improved image penetration - improved bone identification

  • 6mA: reduced acquired irradiation time - reduced motion blurring

  • 0.4 mm focal spot - high resolution

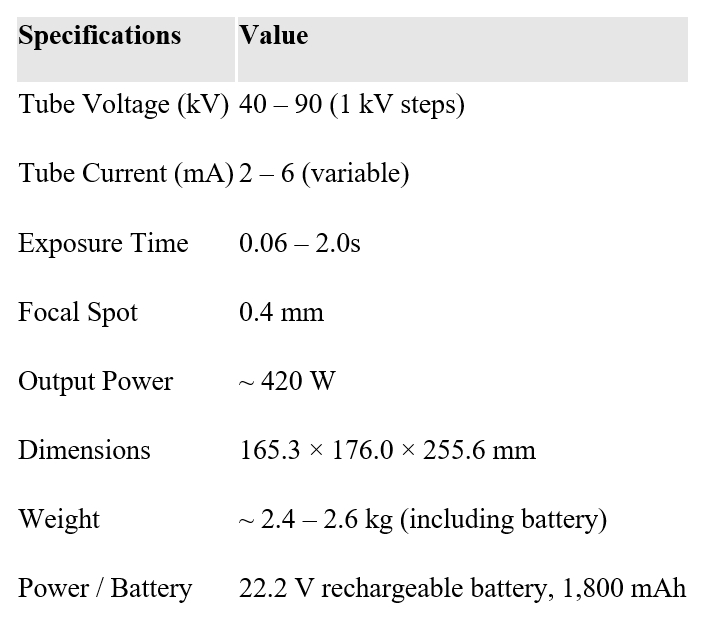

Technical Specifications
